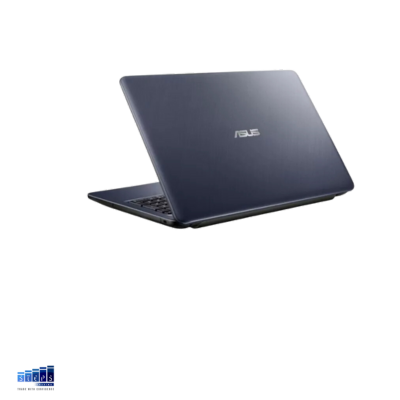

ASUS X543UA Ci3-7020U

Intel Core i3-7020U (3M Cache, 2.30 GHz) Processor
4 GB DDR4
1TB HDD
15.6″ LED HD (1366 x 768) Display

Ci3-7020U/4GB/1TB/DVDRW/WIFI/CAM/BT/15.6″/Win.10 (Star Grey)

X543UA Laptop With 15.6-Inch HD Display, Core i3-7020U Processor/4GB RAM/256GB SSD/Integrated Graphics/Windows 10/Star Grey

SKU: SKULTASX543UACi37020U Categories: ASUS Laptops, Home/Office Laptop, Intel

brands	Asus

Operating System Version	Windows 10
Display Resolution Type	HD
Processor Speed	2.3 GHz
Operating System	Windows
RAM Size	4 GB
Storage Type	HDD
Internal Memory	1 TB
Display Type	LED
Graphics Memory Name	Intel HD Graphics
Version	International Version
Screen Size	16 In
Display Resolution	1366×768
Colour Name	Star Grey
Processor Type	Core I3
Laptop Type	Notebook
Processor Version Number/Generation	7th Gen
Graphics Memory Version	Integrated Graphics
What’s In The Box	1x Laptop, 1x Charger , 1x Power Cable , 1x User Manual
Number Of Cores	Dual Core
RAM Type	DDR4
Processor Brand	Intel
External Graphics	Integrated
Average Battery Life	6 Hours
Keyboard Language	English
Graphic Memory	0 GB
Features	Personal, Personal, Personal
Model Number	ASUS X543UA-GQ2562T
Model Name	Asus
HDMI Output	Yes
Number Of USB Ports	3
SD Card Slot	Yes
Number Of HDMI Ports	1
Processor Version	Core I3-7020U

Based on 0 reviews

0.0 overall

Be the first to review “ASUS X543UA Ci3-7020U” Cancel reply

There are no reviews yet.

Product Model	LSP320
Capbility	Optimal focusing distance	70 meters (230 feet)
	Optimal operating range	15-150 meters
	Speed measurement accuracy	±1km/h
	Speed measurement range	0km/h~320km/h
	Distance measurement accuracy	±15cm
	Speed measurement display resolution	1km/h;
	Distance display resolution	0.1m;
	Minimum speed measurement distance	measuring mode ≤10 meters, weather mode 60 meters (automatic software recognition)
	The longest distance range	speed measurement mode can reach 600-700 meters; Distance in mode 1200 meters
	Speed measurement time	0.33-0.67 seconds
	Speed measurement unit	kilometers per hour/miles per hour/meters per second
	Distance measurement unit	meter/foot/yard
	Laser wavelength	905 nm
	Laser beam divergence	2.5 milliradians
Eye Safety	FDA Class1 (CFR21)
Mechanical structure	Body weight	1.75kg
	Size	197X124X316mm
	Environment	IP65 water/dust proof
	Operating temperature	-10~+60ºC (14~140ºF)
	Charging temperature	0~+45ºC (32~113ºF)
	Storage temperature	-20~+60ºC (-4~140ºF)
Hardware	Processor	huawei Hisilicon ji3519AV100
	Capture data storage	Removable SD card, support 64GB, optional 3G or 4G, sim card
	SD file system format	MS-DOS (FAT16, FAT32)
	Linux (EXT2, EXT3)
	Display	4.3 inches (10.9 cm), 800×480 pixels, color, touch screen
	Camera	SONY 5 million HD industrial CCD camera
	Camera lens	75 mm, fixed focus
Hardware	GPS	Dedicated Beidou &GPS dual mode positioning module
	Real-time clock	Supported
	Receiving channel	20
	Maximum update speed	1Hz
	Maximum height	18,000 m (59,000 ft)
	Maximum speed	515 m /s (1689ft/sec)
	Sensitivity	Acquire -142dBm, track -159dBm
	Obtain time	Hot start 1 second
	Cold start	Less than 60 seconds
	Retrieve	< 1.5 seconds
	Accuracy	Horizontal position
	Average	5 m (7.2 ft)
	Max.	10 m (32.8 ft), spontaneous; 5 m (16.4 ft), SBAS correction
	Vertical position	average 0 m (0 ft); Maximum 15 m (49.2 ft); Horizontal speed 0.1 m/s (0.3 ft/s); Time accuracy
	Real-time clock	CR3032 backup battery 20PPM, can also be used for 3 years without battery pack
	Input/output (I/O)	RS232 serial communication port; USB2.0 image data transmission; Resistive touch screen input; Button input (including trigger);
	WIFI	2.4G&5G
Work Rate	Battery pack	7.4V DC, lithium polymer rechargeable battery pack, short circuit, overcharge protection, provides 5-7 hours of operation
	Battery charger	110vac~240vac 50/60Hz input
	Power consumption	5 watts
Software	Operating system	Linux operating system, custom device drivers
	Anti-jamming	Automatic anti-jamming
	Video size	Standard format, 640X480 pixels
	Still image size	2560×1920 pixels
	Maximum record size	unlimited, memory dependent
	Data encryption	AES-128
Others	Measurement mode	Continuous, lock, automatic, video tracking mode, ranging mode,video mode
	Voice prompt	Speed and voice synchronization
	Languages	English, Chinese
	Tripod	Support (normal camera tripod interface)
	List	Carrying case, host, battery handle *2, charging base, charging head, serial port output cable, tripod converter, manual, mirror wipe, warranty card,

Product Model	LS320 with print function
Capbility	Optimal focusing distance	70 meters (230 feet)
	Optimal operating range	15-150 meters
	Speed measurement accuracy	±1km/h
	Speed measurement range	0km/h~320km/h
	Distance measurement accuracy	±15cm
	Speed measurement display resolution	1km/h;
	Distance display resolution	0.1m;
	Minimum speed measurement distance	measuring mode ≤10 meters, weather mode 60 meters (automatic software recognition)
	The longest distance range	speed measurement mode can reach 600-700 meters; Distance in mode 1200 meters
	Speed measurement time	0.33-0.67 seconds
	Speed measurement unit	kilometers per hour/miles per hour/meters per second
	Distance measurement unit	meter/foot/yard
	Laser wavelength	905 nm
	Laser beam divergence	2.5 milliradians
	Eye Safety	FDA Class1 (CFR21)
Mechanical structure	Body weight	1.75kg
	Size	197X124X316mm
	Environment	IP65 water/dust proof
	Operating temperature	-10~+60ºC (14~140ºF)
	Charging temperature	0~+45ºC (32~113ºF)
	Storage temperature	-20~+60ºC (-4~140ºF)
Hardware	Processor	huawei Hisilicon ji3519AV100
	Capture data storage	Removable SD card, support 64GB, optional 3G or 4G, sim card
	SD file system format	MS-DOS (FAT16, FAT32)
	Linux (EXT2, EXT3)
	Display	4.3 inches (10.9 cm), 800×480 pixels, color, touch screen
	Camera	SONY 5 million HD industrial CCD camera
	Camera lens	75 mm, fixed focus
Hardware	GPS	Dedicated Beidou &GPS dual mode positioning module
	Real-time clock	Supported
	Receiving channel	20
	Maximum update speed	1Hz
	Maximum height	18,000 m (59,000 ft)
	Maximum speed	515 m /s (1689ft/sec)
	Sensitivity	Acquire -142dBm, track -159dBm
	Obtain time	Hot start 1 second
	Cold start	Less than 60 seconds
	Retrieve	< 1.5 seconds
	Accuracy	Horizontal position
	Average	5 m (7.2 ft)
	Max.	10 m (32.8 ft), spontaneous; 5 m (16.4 ft), SBAS correction
	Vertical position	average 0 m (0 ft); Maximum 15 m (49.2 ft); Horizontal speed 0.1 m/s (0.3 ft/s); Time accuracy
	Real-time clock	CR3032 backup battery 20PPM, can also be used for 3 years without battery pack
	Input/output (I/O)	RS232 serial communication port; USB2.0 image data transmission; Resistive touch screen input; Button input (including trigger);
	WIFI	2.4G&5G
Work Rate	Battery pack	7.4V DC, lithium polymer rechargeable battery pack, short circuit, overcharge protection, provides 5-7 hours of operation
	Battery charger	110vac~240vac 50/60Hz input
	Power consumption	5 watts
Software	Operating system	Linux operating system, custom device drivers
	Anti-jamming	Automatic anti-jamming
	Video size	Standard format, 640X480 pixels
	Still image size	2560×1920 pixels
	Maximum record size	unlimited, memory dependent
	Data encryption	AES-128
Others	Measurement mode	Continuous, lock, automatic, video tracking mode, ranging mode,video mode
	Voice prompt	Speed and voice synchronization
	Languages	English, Chinese
	Tripod	Support (normal camera tripod interface)
	List	Carrying case, host, battery handle *2, charging base, charging head, serial port output cable, tripod converter, manual, mirror wipe, warranty card,

	LRM 400M	LRM 600M	LRM 1300M
				Distance measurement range	5 ～ 400M	5 ～ 600M	5 ～ 1300M
				Speed range	0-300KM/H	0-300KM/H	0-300KM/H
Telescope objective aperture	2 5 mm	2 5 mm	2 5 mm
Telescope magnification	6 X	6 X	6 X
Telescope field of view	7°	7°	7°
Telescope exit pupil diameter	3.8mm	3.8mm	3.8mm
Vision adjustment range	± 5	± 5	± 5
Operating temperature	-20 ～ 50 ° C	-20 ～ 50 ° C	-20 ～ 50°C
Ranging error	±0.3 M (Y)±0.2%	± 0.3 (Y) ± 0.2%	± 0.3 M (Y) ± 0.2%
Speed measurement error	± 2.5 km/h	± 2.5 km/h	± 2.5 km/h
Battery	3V -5v	3V -5v	3V -5v
Battery low voltage indication
Product Weight	190 g	190 g	190 g
Dimensions	104×72×41mm	104×72× 41 mm	104×72×41mm

Optimum Focus Distance	70 m ( 230 feet )
Lens Operating Range	Handheld: 15-80 m
	Tripod Mounted: 15-90 m
Speed Accuracy	± 2 km/h / ± 1 mph
Speed Range	0- 320 km/h – Approaching and Departing
Distance Accuracy	±30 cm
Display Resolution	1 km/h & 1 m
Measurement time	0.33 seconds
Maximum Laser Sampling	up to 3 measurements per second
Laser Wavelength	905 nm
Beam Divergence	2.5 milliradians
Eye Safety	Class 1 ( CFR21) & IEC 60825-1 Class 3R
Environment	NEMA 4 / IP65-IP67 / Water and Dust Resistant
Temperature Range	Operating: -10°C to +60° C / Charging: 0°C to +45°C / Storage: -20° C to +60°C
Operating System	Linux based
Data Storage	Removable SD Card/ 16 GB
Display	4.3 inch , 480*272 pixel, color ,18 bpp, touch sensitive
Camera Sensor	Sony 2.0M Pixel (1600*1200)
Camera lens	75 mm, Manual Focus and Iris
Still Image Sizes	1600×1200 pixels
Languages	English, but we can do Customized
Warranty	18 month
