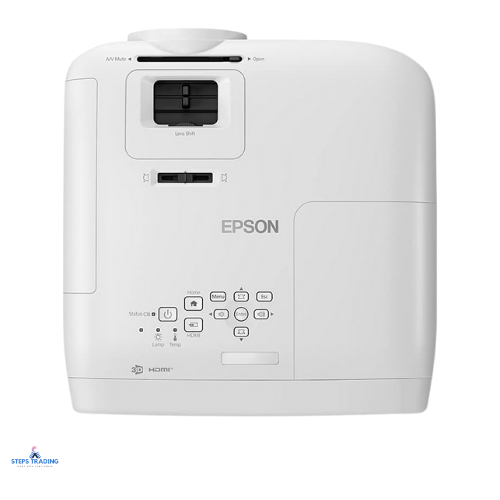

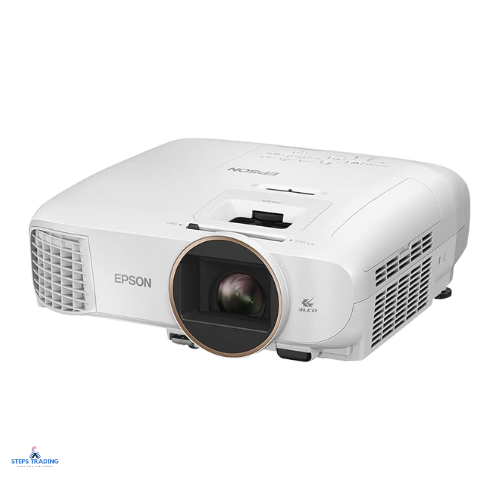

Epson EH-TW5820 3LCD Projector


Brand: Epson
Special feature: 3d Readyction, USB Connectivity
Connectivity technology: Bluetooth, USB, HDMI
Display resolution: 1920 x 1080
Display resolution maximum: 1980 x 1080 Pixels
Display type: LCD
Item dimensions: L x W x H: 31.5 x 30.9 x 12.2 centimetres
Mounting type: Ceiling Mount
Brightness: 2700 Lumen


Make your home centre stage for all the action with a Full HD 1080p projector with gaming features. WIth Android TV™ you can easily stream and cast entertainment to a smart and flexible display solution. Sharp images deep blacks and smooth movement, plus great connectivity, easy set-up and alignment make this projector the ultimate choice for all home entertainment.

SKU: STPROEPEHTW5820 Categories: ,


Projection System 3LCD Technology, RGB liquid crystal shutter
LCD Panel 0.61 inch with C2 Fine
Color Light Output 2,700 Lumen- 1,780 Lumen (economy) In accordance with IDMS15.4
White Light Output 2,700 Lumen – 1,780 Lumen (economy) In accordance with ISO 21118:2012
Resolution Full HD 1080p, 1920 x 1080, 16:9
High Definition Full HD 3D
Aspect Ratio 16:9
Native Contrast 70,000 : 1
Light source Lamp
Lamp UHE, 200 W, 4,500 h durability, 7,500 h durability (economy mode)
Keystone Correction Auto vertical: ± 30 °, Manual horizontal ± 30 °
Colour Video Processing 10 Bits
2D Vertical Refresh Rate 192 Hz – 240 Hz
3D Vertical Refresh Rate 400 Hz – 480 Hz
Colour Reproduction Upto 1.07 billion colours
Throw Ratio 1.33 – 2.00:1
Zoom Manual, Factor: 1 – 1.6
Lens Optical
Lens Shift Manual – Vertical ± 60 %
Screen Size 30 inches – 300 inches
Projection Distance Wide/Tele 2.35 m – 3.82 m ( 80 inch screen)
Projection Lens F Number 1.51 – 1.99
Projection Lens Focal Length 18.2 mm – 29.2 mm
Projection Lens Focus Manual
Interfaces USB 2.0 Type B (Service Only), HDMI 1.4, Stereo mini jack audio out, Bluetooth
Android TV Yes
Security Kensington lock, Security cable hole
3D Active
2D Colour Modes Dynamic, Natural, Cinema, Bright Cinema
3D Colour Modes 3D Dynamic, 3D Cinema
3D Supported formats Side by side, Top and bottom
Other features 3D depth adjustment, AV Mute Slide, Android TV, Automatic keystone correction, Built-in speaker, Frame interpolation, Game mode, Horizontal and vertical keystone correction, Long lamp life, Quick Corner
Video Color Modes Cinema, Dynamic, Natural, Bright Cinema
Power consumption 297 Watt, 227 Watt (economy), 0.3 Watt (standby), On mode power consumption as defined in JBMS-84 262 Watt
Heat Dissipation 1,009.8 BTU/hour (max)
Supply Voltage AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions 309‎ x 315 x 122 mm (Width x Depth x Height)
Product weight 3.8 kg
Noise Level Normal: 36 dB (A) – Economy: 28 dB (A)
Supported Temperature Operation 5° C – 35° C, Storage -10° C – 60° C
Supported Humidity Operation 20% – 80%, Storage 10% – 90%
Options Soft carry case
Loudspeaker 10 Watt
What’s in the box Main unit, Power cable, Remote control incl. batteries, User manual (CD), Warranty card
Room Type / Application Gaming, Home Cinema, Home Photo, Sports, Streaming, TV & Box sets
Positioning Ceiling Mounted, Desktop
Colour White
