Epson Projector EB-685W

Epson

  • Projection Method: Rear,Front / Maximum Focal Length:3.70 Mm / Maximum Diagonal Image Size:100″ / Number Of Lamps:1
  • Lamp Power: 250 W / Normal Mode Lamp Life:5000 Hour / Economy Mode Lamp Life:10000 Hour / Standard Mode Brightness:3500 Lm
  • Graphic Mode: Wxga / Maximum Resolution:1400 X 1050 / Native Aspect Ratio:16:10 / Video Signal Standard:Hdtv
  • Usb: Yes / Operating Power Consumption:373 W / Height:5.9″ / Width:14.5″
  • Weight (Approximate): 12.60 Lb
  • Package Contents: Powerlite 685W Wxga 3Lcd Presentation Display, 15′ Power Cord, Projector Remote Control, Batteries, User Manual Cd, Projector Software Cds, Quick Setup Sheet, Installation Guide, Template Sheet, Projector Feet

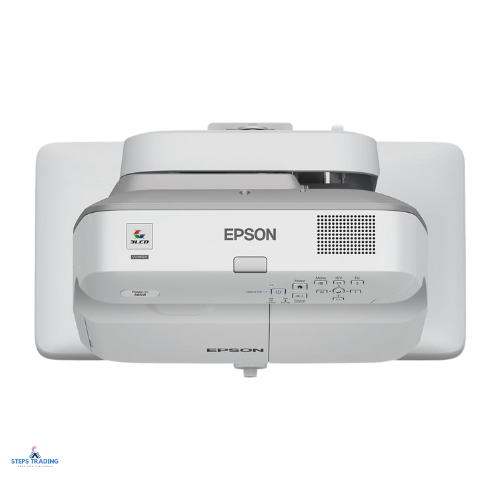

Epson Projector EB-685W



The EB-685W’s ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.



SKU: STProEPEB685W Categories: ,
brands

Epson

TECHNOLOGY
Projection Technology Epson 3LCD, 3-chip technology
Projection System RGB liquid crystal shutter projection system
LCD Panel 0.59-inch with (D9, C2 Fine)
OPTICAL
Zoom Ratio 1.0 – 1.35 (Digital Zoom)
Screen Size (Projection Distance) 60.0″ to 100.0″ [35.4 to 60.1cm]
74.3″ screen 44.3 cm
Throw Ratio 0.28 (Zoom:Wide)
0.37 (Zoom:Tele)
Projection Lens Type No Optical Zoom / Focus (Manual)
Projection Lens F Number 2.6
Projection Lens Focal Length 3.7 mm
Focus Method Manual Focus
Offset 5.8:-2
White Light Output 3,500 lumens
Colour Light Output 3,500 lumens
Resolution WXGA
Native Aspect Ratio 16:10
Contrast Ratio 14,000:1
Keystone Correction Vertical: -3 to +3 degrees
Horizontal: -3 to +3 degrees
Colour Reproduction Up to 1.07 billion colours
Colour Processing 10 bit

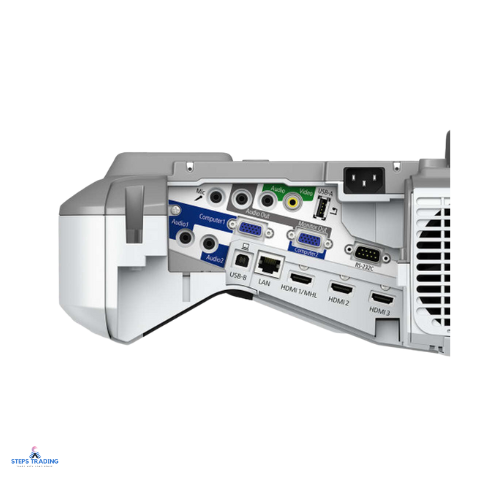

CONNECTIVITY
Video I/O – Input 2x RGB D-sub 15pin
*Computer 2 in common with Monitor Out
1x RCA Composite
Video I/O – Output 1x RGB D-sub 15pin
*Computer 2 in common with Monitor Out (Output signal : Computer 1 only)
Digital Input 3x HDMI (1 supports MHL)
Audio I/O – Input 3x Stereo mini
Audio I/O – Output 1x Stereo mini
Mic I/O – Input 1x Stereo mini
Control I/O 1x RS-232C D-sub 9pin
USB I/O 1x USB Type A (for USB Memory, USB Document Camera, Firmware update, Copy OSD settings)
1x USB Type B (for USB display, mouse, K/B, Control, Firmware update, Copy OSD settings)
Network I/O: 1x RJ45 (100Mbps) Wired LAN
1x USB Type A (for Optional ELPAP10 LAN unit)
Wireless Connectivity Optional ELPAP10 Wireless LAN unit
Speaker Output Monaural: 16 W x 1
ADVANCED FEATURES
EasyMP Network Projector control and projector management via network Yes
AMX Device Discovery Yes
Crestron Integrated Partner Yes
Crestron RoomView Yes
Extron IP Link Yes
Control4 Yes
EasyMP Network Multi PC Projection Yes
Message Broadcasting Yes
Firmware update Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Copy OSD settings Network via LAN cable, USB A via USB thumb drive, USB B via USB cable
Quick Wireless Connection Yes
Wireless LAN Security WPA/WPA2-Personal (with optional Wireless LAN Unit)
Instant Off Yes
Direct Power On Yes
Auto Power On Yes (Computer1,USB-B)
Security * Kensington® – lock provision
* Padlock & Security cable hole
* Wireless LAN unit lock
* Password protect function (Power On, Network, Protection of User logo)
Colour Modes Dynamic, Presentation, Cinema, sRGB, BlackBoard
Integrated Mount Optional (ELPMB46)
GENERAL
Dimensions (excl feet) WxDxH 367 x 400 x 149mm
Weight 5.7kg
Lamp Warranty 1 Year (or 750 hours)*
Projector Warranty 3 Years
Lamp Hours 5,000 hours (Normal)
10,000 hours (ECO)
Lamp Type 250W UHE
Power Consumption: Lamp On 354W (Normal)
309W (ECO)
Power Consumption: Networked Standby 2.3W
Power Consumption: Energy Saving 0.37W
Air Filter maintenance cycle up to 10,000 hours
Fan Noise Level 35dB (Normal)
30dB (ECO)
* Whichever comes first. For more information visit Epson Projector Warranty
WHAT’S IN THE BOX
Main Unit EB-685W Projector
Power Cable Yes 5M

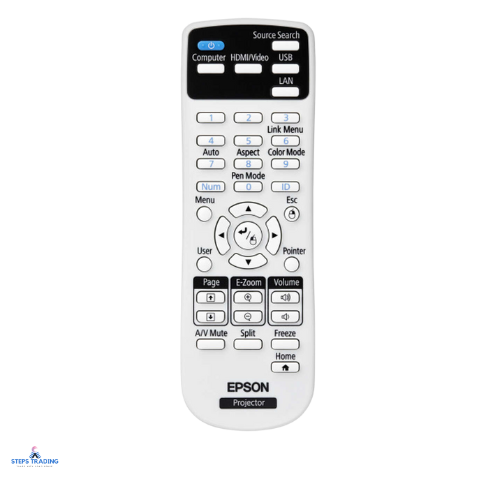

Remote Control Yes
Battery for Remote Control AA x 2
Feet for main unit Yes
Password Protect sticker Yes
PRODUCT OPTIONS Description
Lamp ELPLP91
Air Filter ELPAF49
USB Extention cable ELPKC31
Wall Mount ELPMB46
Table Mount ELPMB29
External speakers ELPSP02
Wireless LAN ELPAP10
Document Camera ELPDC21
Control Box ELPCB02
