Core i5 Processor, Intel
Intel Core I5-10400 Processor Tray
Login to see prices Intel Core I5-10400 TRAY Processor
- Generation: 10th generation
- Total Cores: 6
- Total Threads: 12
- Max Turbo Frequency: 4.30 GHz
- Performance-core Base Frequency: 2.90 GHz
- Cache: 12 MB Intel® Smart Cache
- Compatibility: Compatible with Intel 400 series chipset-based motherboards
Intel Core I5-10400 TRAY Processor

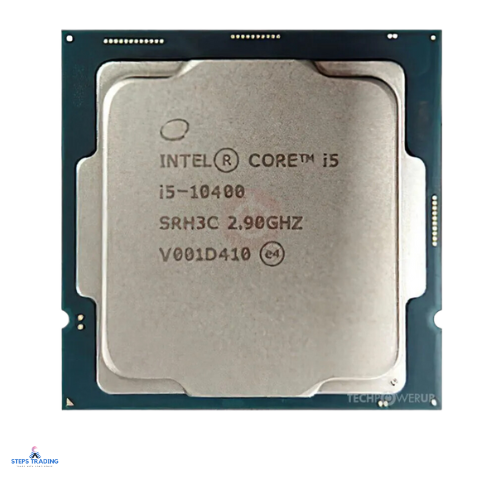

The Core i5-10400 2.9 GHz Six-Core LGA 1200 Processor from Intel has a base clock speed of 2.9 GHz and comes with features such as Intel Optane Memory support, Intel Boot Guard, Intel VT-d virtualization technology for directed I/O, and Intel Hyper-Threading technology.
Also do check Intel Core i3-12100 TRAY Processor
| brands | intel |
|---|
- Product Collection10th Generation Intel® Core™ i5 Processors
- Vertical SegmentDesktop
- Processor Numberi5-10400
- Lithography14 nm
- Use ConditionsPC/Client/Tablet
- Recommended Customer Price$200.00 – $210.00
CPU Specifications
- Total Cores6
- Total Threads12
- Max Turbo Frequency4.30 GHz
- Intel® Turbo Boost Technology 2.0 Frequency‡4.30 GHz
- Processor Base Frequency2.90 GHz
- Cache12 MB Intel® Smart Cache
- Bus Speed8 GT/s
- TDP65 W
Supplemental Information
- Marketing StatusLaunched
- Launch DateQ2’20
- Embedded Options AvailableNo
- DatasheetView now
Memory Specifications
- Max Memory Size (dependent on memory type)128 GB
- Memory TypesDDR4-2666
- Max # of Memory Channels2
- Max Memory Bandwidth41.6 GB/s
- ECC Memory Supported ‡No
Processor Graphics
- Processor Graphics ‡Intel® UHD Graphics 630
- Graphics Base Frequency350 MHz
- Graphics Max Dynamic Frequency1.10 GHz
- Graphics Video Max Memory64 GB
- 4K SupportYes, at 60Hz
- Max Resolution (HDMI)‡4096 x 2160@30Hz
- Max Resolution (DP)‡4096 x 2304@60Hz
- Max Resolution (eDP – Integrated Flat Panel)‡4096 x 2304@60Hz
- DirectX* Support12
- OpenGL* Support4.5
- Intel® Quick Sync VideoYes
- Intel® InTru™ 3D TechnologyYes
- Intel® Clear Video HD TechnologyYes
- Intel® Clear Video TechnologyYes
- # of Displays Supported ‡3
- Device ID0x9BC8 / 0x9BC5
Expansion Options
- Scalability1S Only
- PCI Express Revision3.0
- PCI Express Configurations ‡Up to 1×16, 2×8, 1×8+2×4
- Max # of PCI Express Lanes16
Package Specifications
- Sockets SupportedFCLGA1200
- Max CPU Configuration1
- Thermal Solution SpecificationPCG 2015C
- TJUNCTION100°C
- Package Size37.5mm x 37.5mm
Advanced Technologies
- Intel® Optane™ Memory Supported ‡Yes
- Intel® Thermal Velocity BoostNo
- Intel® Turbo Boost Max Technology 3.0 ‡No
- Intel® Turbo Boost Technology ‡2.0
- Intel® Hyper-Threading Technology ‡Yes
- Intel® Transactional Synchronization ExtensionsNo
- Intel® 64 ‡Yes
- Instruction Set64-bit
- Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
- Idle StatesYes
- Enhanced Intel SpeedStep® TechnologyYes
- Thermal Monitoring TechnologiesYes
- Intel® Identity Protection Technology ‡Yes
Security & Reliability
- Intel® AES New InstructionsYes
- Secure KeyYes
- Intel® Software Guard Extensions (Intel® SGX)Yes with Intel® ME
- Intel® OS GuardYes
- Intel® Trusted Execution Technology ‡No
- Execute Disable Bit ‡Yes
- Intel® Boot GuardYes
- Intel® Stable IT Platform Program (SIPP)No
- Intel® Virtualization Technology (VT-x) ‡Yes
- Intel® Virtualization Technology for Directed I/O (VT-d) ‡Yes
- Intel® VT-x with Extended Page Tables (EPT) ‡Yes
