  • Device type: Black and white laser multifunction device for A3 format
  • Basic functions: Print, copy, scan, send and fax
  • Processor speed: Dual-core processor with a frequency of 1.6 GHz
  • Control panel: 8.9 cm (3.5 inch) monochrome touch panel
  • Memory: Standard: 1.0 GB of RAM
  • Storage: Standard: 2 GB eMMC
  • Connection interface: USB 2.0 (1 device)
  • Speed: Print speed of up to 24 pages per minute

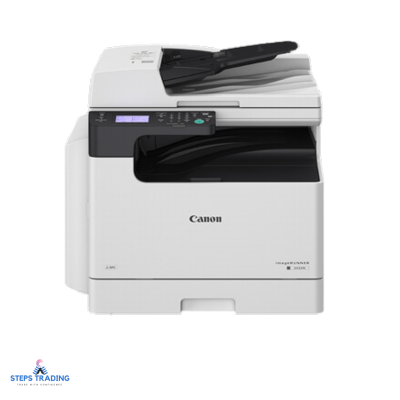

Designed to meet the needs of small and medium enterprises (SMEs), the iR2224N/2224 is packed with essential functionalities. With print speed up to 24 ppm, enjoy great productivity with robust information security.

SKU: STCOPCANIR2224 Categories: ,
Machine Type A3 Monochrome Laser Multifunctional
Core Functions iR2224N: Print, Copy, Scan, and Send
iR2224: Print, Copy, and Scan

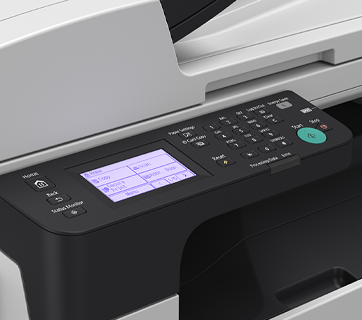

Control Panel 3.5 inch monochrome touch panel
Memory 1.0 GB RAM
Storage eMMC: 2 GB
Interface Connection NETWORK*1
Standard: 100Base-TX/10Base-T, Wireless LAN (IEEE 802.11 b/g/n)OTHERS Standard:
USB 2.0 (Device) x1
Paper Supply Capacity (A4, 80 gsm) Standard: 350 sheets (Paper Drawer: 250 sheets, MPT Tray: 100 sheets)
Maximum: 600 sheets (with Cassette Feeding Module-AK1)
Paper Output Capacity (A4, 80 gsm) Standard: 250 sheets
Maximum: 250 sheets
Supported Media Types Multi-purpose Tray:
Thin, Plain, Recycled, Thick, Colour, Bond, Label, Pre-punched, EnvelopePaper Cassette:
Plain, Recycled, Colour, Pre-punched
Supported Media Sizes Multi-purpose tray:
A3, A4, A4R, A5, A5R, B4, B5, B5R,
Envelope (COM10, Monarch, DL, ISO-C5),
Custom size min. 95.0 x 148.0 mm up to 297.0 x 431.0 mmPaper Cassette:
Standard size: A3, A4, A4R, A5R, B4, B5, B5R
Supported Media Weights Multi-purpose tray: 60 to 157 gsm
Paper cassettes: 64 to 90 gsm
Duplex: 60 to 90 gsm
Warm-up Time


From Power On: 13 seconds or less*2 *3
From Sleep Mode: 4.3 seconds or less
Dimensions (W x D x H) iR2224N (with DADF): 627 x 607 x 606 mm  iR2224/2224N (with Platen cover): 627 x 589 x 502 mm
iR2224N (with DADF and cassette): 627 x 607 x 698 mm
iR2224N (with Platen cover and cassette): 627 x 589 x 594 mm
Installation Space (W x D) 1065 x1285 mm
Weight  iR2224N: Approx. 30.3 kg without toner and Platen cover
iR2224: Approx. 31.6 kg without toner and including Platen cover


Print Speed (BW) 1-sided: Up to 24 ppm (A4), Up to 12 ppm (A3), Up to 11 ppm (A4R)
2-sided: Up to 16.7 ppm (A4), Up to 7.5 ppm (A3), Up to 7.8ppm (A4R)
Print Resolution (dpi) 600 × 600
Page Description Languages Standard: UFRII
Optional (iR2224N only): PCL6/PCL5
Printing From Mobile and Cloud Application Apple AirPrint, Canon PRINT Business, Mopria, Canon Print Service
Fonts PCL fonts: 45 Roman, 10 Bitmap fonts
Operating System UFRII: Windows® 8.1 / Windows® 10 / Windows® 11 / Windows® Server 2012 / Windows® Server 2012 R2 / Windows® Server 2016 / Windows® Server 2019 / Windows® Server 2022/ macOS (10.12 or later)

PCL: Windows® 8.1 / Windows® 10 / Windows® 11 / Windows® Server 2012 / Windows® Server 2012 R2 / Windows® Server 2016 / Windows® Server 2019 / Windows® Server 2022



Document Feeder Paper Capacity 50 Sheets (80 gsm)
Acceptable Originals and Weights Platen: Sheet, Book

Document Feeder sheet media weight:
1-sided/2-sided continuous scanning: 52 to 105 gsm (BW/CL)
Only 1-sheet feeding is supported in 37-52 and 105-128 gsm

Supported Media Sizes Platen: Max. scanning size: 297.0 x 431.8 mm Document Feeder media size: A3, A4, A4R, A5, A5R, B4, B5, B5R
Custom size: 128.0 x 148.0 mm to 297.0 x 431.8 mm
Scan Speed (ipm: BW/CL, A4) DADF:
1-sided Scanning: 35/25 (300 dpi, send), 25 (600 dpi, copy)
2-sided Scanning: 12/8 (300 dpi, send), 8 (600 dpi, copy)
Scan Resolution (dpi) Scan for Copy: up to 600 x 600
Scan for Send: (Push) up to 300 x 600, (Pull) up to 600 x 600
Pull Scan Specifications ScanGear MF For both TWAIN and WIA

Windows® 8.1/ Windows® 10/ Windows® 11 macOS (10.12 or later)



Authentication and Access Control Department ID Authentication (Department ID and PIN Login, Function Level Login)
Document Security Print Security (SecurePrint, Encrypted SecurePrint), Send Data Security (Restricted E-mail/File send functions, Confirming FAX number, Allow/Restrict Fax Driver Transmissions, Allow/Restrict Sending from History)
Network Security TLS 1.3*5, IPSec, IEEE802.1X authentication, SNMPv3, Firewall Functionality (IP Address Filtering), Enabling/Disabling (Network Applications, Remote UI, USB Interface), G3 FAX separation from LAN, USB Port separation from LAN
Device Security Standard HDD/SSD Initialize, Job Log Conceal Function, Protecting MFP Software Integrity, Verify System at Startup (NIST SP800-193)
Device Management and Auditing Administrator Password, Digital Certificate and Key Management*6, Security Policy Setting*6


Operating Environment Temperature: 10 to 30 ºC
Humidity: 20 to 80% RH (Relative Humidity)
Power Source Asia: 220-240V 50/60Hz 10A
Power Consumption Maximum: Approx. 1,500 W
Standby: Approx. 15.5 W
Sleep mode: Approx. 0.9 W


Paper Supply Options


  1. iR2224N only.
  2. Time from device power-on, until copy ready (not print reservation).
  3. Quick start mode N/A.
  4. Single page only.
  5. STD only, ENT model N/A.
