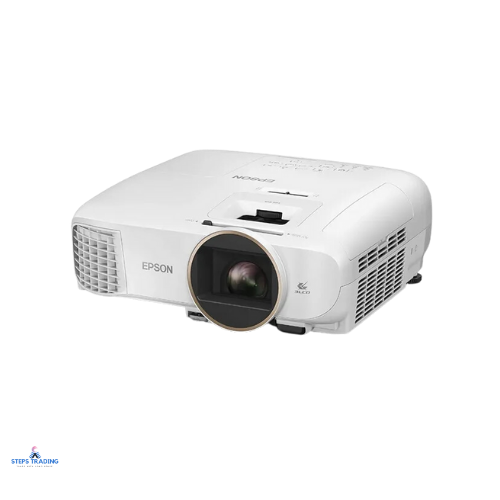

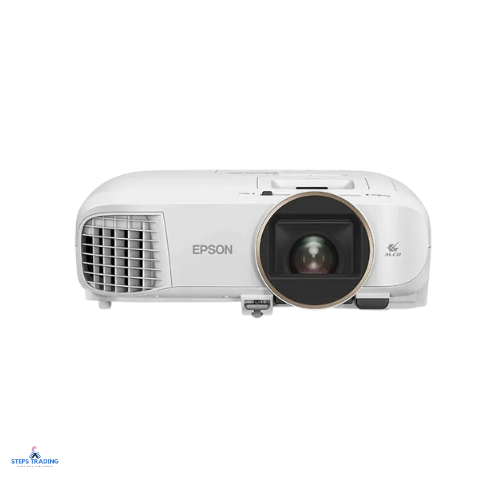

Epson EH-TW5650 3LCD Projector

Technology: 3LCD (0.61 inch with MLA D10)
Resolution: Full HD 1080p, 1920 x 1080
Brightness: 2.500 lumen-1.650 lumen (economy)
Contrast: 60,000:1 (dynamic)
Dynamic Iris: Yes
Light: 200 W, 4.500 h durability, 7.500 H Durability (economy mode)
Ratio: 1.33-2.16:1
3d: Yes (active)
Noise: Normal: 37 db-Economy: 27 db
Dimensions: 309 x 285 x 122 mm (Width x Depth x Height)
Weight: 3.5 kg

EPSON PROJECTOR EH-TW5650

Epson Home Theatre TW5650 Wireless 2D/3D Full HD 1080p 3LCD Projector. Advanced features are now available with this affordable projector. Enjoy that high quality movie experience at the comfort of your home.

SKU: STPROEPEHTW5650 Categories: Epson Projector, Projectors

brands	Epson

Technology
Projection System	3LCD Technology, RGB liquid crystal shutter
LCD Panel	0,61 inch with MLA (D10)
Colour Light Output	2.500 lumen- 1.650 lumen (economy) in accordance with IDMS15.4
White Light Output	2.500 lumen – 1.650 lumen (economy) in accordance with ISO 21118:2012
Resolution	Full HD 1080p, 1920 x 1080, 16:9
High Definition	Full HD 3D
Aspect Ratio	16:9
Contrast Ratio	60.000 : 1
Light source	Lamp
Lamp	UHE, 200 W, 4.500 h durability, 7.500 h durability (economy mode)
Keystone Correction	Auto vertical: ± 30 °, Manual horizontal ± 30 °
Colour Processing	10 Bits
2D Vertical Refresh Rate	192 Hz – 240 Hz
3D Vertical Refresh Rate	400 Hz – 480 Hz
Colour Reproduction	upto 1.07 billion colours
Optical
Projection Ratio	1,33 – 2,16:1
Zoom	Manual, Factor: 1,6
Lens	Optical
Lens Shift	Manual
Image Size	30 inches – 300 inches
Projection Distance Wide/Tele	2,35 m – 3,82 m ( 80 inch screen)
Projection Lens F Number	1,51 – 1,99
Focal Distance	18,2 mm – 29,2 mm
Focus	Manual
Offset	10 : 1
Connectivity

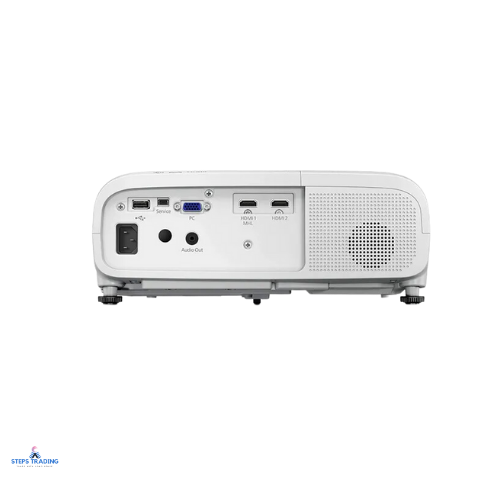

Interfaces	VGA in, HDMI in (2x), MHL, USB 2.0 Type A, USB 2.0 Type B (Service Only), Stereo mini jack audio out, Wireless LAN IEEE 802.11b/g/n (WiFi 4), Miracast
Epson iProjection App	Ad-Hoc / Infrastructure
Advanced Features
Security	Kensington lock, Security cable hole, Wireless LAN security
3D	Active
2D Colour Modes	Dynamic, Natural, Cinema, Bright Cinema
3D Colour Modes	3D Dynamic, 3D Cinema
3D Supported formats	Side by side, Top and bottom
Features	3D depth adjustment, Built-in speaker, Epson Super White, Frame interpolation, Horizontal and vertical keystone correction, MHL audio/video interface, Quick Corner, Screen Mirroring, Split-Screen-Function, Wireless LAN capable, iProjection App
Video Colour Modes	Cinema, Dynamic, Natural, Bright Cinema
General
Energy Use	296 W, 227 W (economy), 0,2 W (standby), On mode power consumption as defined in JBMS-84 256 W
Supply Voltage	AC 100 V – 240 V, 50 Hz – 60 Hz
Product dimensions	309‎ x 285 x 122 mm (Width x Depth x Height)
Product weight	3,5 kg
Noise Level	Normal: 37 dB (A) – Economy: 27 dB (A)
Temperature	Operation 5° C – 35° C, Storage -10° C – 60° C
Humidity	Operation 20% – 80%, Storage 10% – 90% If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling. If you are concerned about the environment in which your projector is installed, or if you have any other questions, please contact our support department and they can provide additional assistance
Options	3D active shutter glasses, Air filter
Loudspeaker	10 W
What’s in the box	Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User manual (CD), Warranty card
Colour	White
