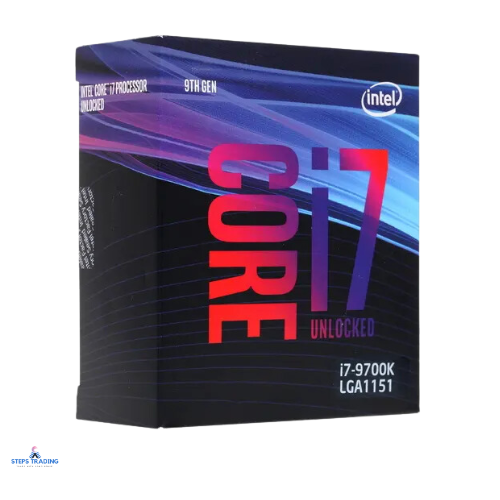

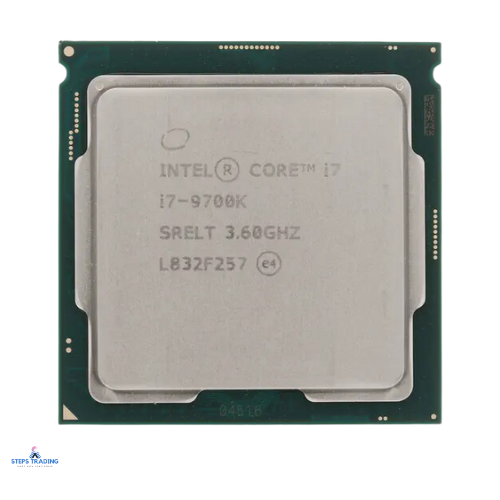

Intel Core i7-9700K Processor Tray

intel

Ruler Intel Core i7
Socket connector (SOCKET) LGA1151-V2
Compatibility Motherboards LGA1151-V2
Number of Cores 8 cores
The number of flows 8
CPU frequency 3600
The volume of the cache l3 12288

Intel Cpu I7-9700K Box

Only compatible with their 300-series chipset-based motherboards, the Core i7-9700K 3.6 GHz Eight-Core LGA 1151 Processor from Intel is designed for gaming, creating, and productivity. It has a base clock speed of 3.6 GHz and comes with features such as Intel Optane Memory support, AES-NI encryption, Intel vPro technology, Intel TXT, Intel Device Protection with Boot Guard, and Intel VT-d virtualization technology for directed I/O. With Intel Turbo Boost Max 3.0 technology, the maximum turbo frequency this processor can achieve is 4.9 GHz. Additionally, this processor features 8 cores with 8 threads in an LGA 1151 socket, has 12MB of cache memory, and 24 PCIe lanes. Having 8 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 8 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core. This processor also supports dual-channel DDR4-2666 RAM and utilizes 9th-generation technology.

Graphically, the Core i7-9700K uses the integrated Intel UHD Graphics 630 chipset, which has a dynamic frequency of 1200 MHz. If you need even more performance, this processor is unlocked, which lets you overclock the processor over its maximum speed.

SKU: STPROINTCi79700K Categories: ,
brands

intel

CPU Model Intel Core i7-9700K
CPU Socket LGA 1151
Manufacturing Process 14 nm
Maximum CPU Configuration 1S
Maximum Number of PCIe Lanes 16 (Revision 3.0)
Unlocked Yes
Performance
Number of Cores 8
Number of Threads 8
Base Clock Speed 3.6 GHz
Maximum Boost Speed 4.9 GHz
L3 Cache 12 MB
Memory Support
Maximum Capacity 64 GB
Memory Support DDR4 2666 MHz
ECC Memory No
Channel Architecture Dual Channel
Maximum Memory Bandwidth 41 GB/s
Optane Memory Support Yes
Power
Thermal Design Power (TDP) 95 W
Included Thermal Solution None
Maximum Temperature 212°F / 100°C
Technology
AES Support Yes
Extension AVX 2.0, SSE 4.1/4.2
Instruction Set 64-Bit
Virtualization Yes: Intel VT-d
vPro Support Yes
Performance Technologies SpeedStep, Stable Image Platform Program, TSX-NI, Turbo Boost 2.0, Turbo Boost Max 3.0
Security Technologies Device Protection with Boot Guard, Execute Disable Bit, MPX (Memory Protection Extensions), OS Guard, Secure Key, Software Guard Extensions, Trusted Execution Technology
Video Technologies Clear Video, Clear Video HD, InTru 3D, Quick Sync Video
Integrated Graphics
Graphics Chipset Intel UHD Graphics 630
Maximum Resolution Support 4096 x 2304 at 60 Hz
Supported APIs DirectX: 12
OpenGL: 4.5
Number of Displays 3
Maximum Shared Video Memory 64 GB
Base Clock Speed 350 MHz
Maximum Boost Speed 1.2 GHz
Packaging Info
Package Weight 0.2 lb
Box Dimensions (LxWxH) 4.6 x 4.15 x 1.75″
